Products

At Ashiana, we excel as one of the largest manufacturers of Turbo TMT Bars ranging from 8mm to 32mm in diameter coming in FE-415, Fe-500, Fe-550 grades, by the name of 'Kamdhenu Saria', a ready beckoner in trust & strength in Indian construction Industry, thus making a preferable choice among the builders. These bars are manufactured at our state-of-art plant located in Bhiwadi, Rajasthan, under the expert guidance and supervision of frontline engineers and metallurgists. Our extensive experience in steel sector has empowered us with the capability TMT steel bars of the unbeatable quality and standard.

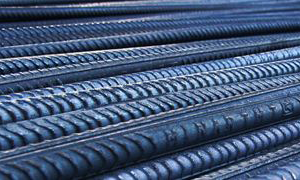

ASHIANA KAMDHENU TMT BARS
ASHIANA KAMDHENU CTD BARS

SAVING BY DIEMNSIONAL TOLERANCEM
ASHIANA KAMDHENU TMT is guaranteed for not being heavy and comes with a section weight that is lower than the nominal, which reduces the quantity of steel consumed by 10% to 20% without compromising on strength

Estimate Weight or Number of Pcs per Bundle

Bar Diameter (mm) Bundle Length(ft) * No of pcs. Weight/Meter(Kgs) *Weight of Bundle(Kgs)
8mm 36/40 20-18 0.375-0.405 86/86
10mm 36/40 15-13 0.585-0.405 99/95
12mm 36/40 10-9 0.860-0.910 97/97
16mm 40/42 05 1.530-1.600 95/100
20mm 40/44 03 2.420-2.500 90/99
25mm 40/44 01 3.775-3.855 47/51

* Number of Pcs & weight of bundles may be differ from state to state

Chemical Compositions

S.No. Content IS: 1786-85 Ashiana Kamdhenu TMT
1 Carbon (Max) 0.30% 0.17 to 0.24%
2 Sulphur (Max) 0.060% 0.045%
3 Phosphorous (Max) 0.060% 0.045%
4 S+P (Max) 0.110% 0.090%
5 Carbon Equivalent (Max) 0.42% 0.38%

Physical Properties (Fe-415)

S.No. Tests IS: 1786-85 Ashiana Kamdhenu TMT
1 0.2 % proof stress (Min) 415 N/mm2 450 N/mm2
2 Elongation (Min) 14.50% 20.0%
3 Tensile Strength (Min) 10% more than 0.2% proof stress but not less then 485N/mm2 of good quality saria 10% more than 0.2% proof stress but not less then 530N/mm2 of good quality saria

Technical Standards of Product

BIS Standard Ashiana Kamdhenu Standard
Size Bar (mm) Lower Limit Standard Upper limit Weight Variation(gms/mtr) Min Max Weight Variation(gms/mtr)
8 0.367 0.395 0.423 56 0.375 0.405 30
10 0.574 0.617 0.660 86 0.585 0.620 40
12 0.844 0.888 0.932 88 0.860 0.910 50
16 1.501 1.580 1.659 158 1.530 1.600 70
20 2.396 2.470 2.544 148 2.420 2.500 80
25 3.735 3.850 3.966 231 3.775 3.855 80

Mechanical Properties As per IS:1786-85(Grade Fe415)

Tests BIS Standard Ashiana Kamdhenu Standard
0.2% Proof stress (Min) 415.0 N/mm2 450 N/mm2
Tensile Strength(Min) 485 N/mm2 530 N/mm2
% Elongation (Min) 14.5% 20.0%
Bend Test Upto & Incl. 22 mm3d Satisfies Bend Test on 2d & 3d
Over 22 mm 4d
Re-Bend Test Upto & Incl. 10 mm 5d Satisfies Bend Test on 4d & 5d
Over 20 mm 6d
